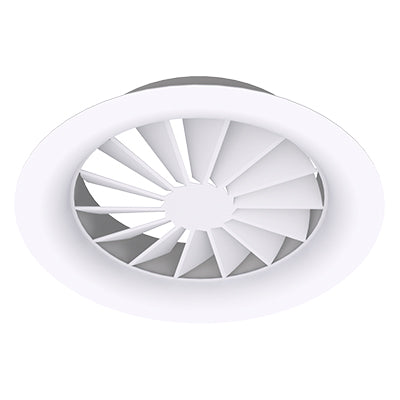

RWR-2 (RAL9016) • Circular swirl diffuser with fixed blades

Name: RWR-2 (RAL9016) • Circular swirl diffuser with fixed blades
Brand: Fanbase-dev
Availability: OutOfStock

Sold out

£0.00 - £0.00

£0.00

£0.00 - £0.00

£0.00

Circular swirl ceiling diffusers with flat frame and fixed blades

Quantity

Brand

CAIROX

Application

For air supply and exhaust in ventilation and air conditioning systems.

Material

Steel

Documents

UK-EN-A04.081.1BIS-RWR_2_RAL9016.pdf

Composition

Fixed blades

Order Example

RWR-2, 200 + RER-LB + CRC 250

Explanation
RWR-2 = Diffuser type
200 = Neck size of diffuser

Accessories
RER-LB = Plenum box
CRC = Regulating valve for plenum box
250 = Plenum box connection diameter 250

Symbols and Specifications

Q = Air volume in m³/h
Ak = Effective surface (free area) in m²
B = Distance between the diffusers in m
H = Installation height of the diffusers in m
Vz = Maximum velocity at the occupied zone according to distance between the diffusers and installation height in m/s
Vk = Average effective velocity through the diffuser in m/s
X0.25 = Throw length in m at an end velocity Vt of 0,25m/s
Ps = Static pressure loss given in Pa
Lw(A) = Acoustic power in dB(A)

The throw X0.25 is given at an end velocity of 0.25m/s for a smooth ceiling without any obstacles.
The values are given for isothermal supply air. Throw distances for cooling conditions at -11K can be calculated by dividing the X0.25 values with factor 1.1. For heating purposes at Dt of +11K a multiplier of 1.1 should be applied to the given X0.25 value.
In order to achieve a high comfort level, selections can be made according to the maximal velocity at the occupied zone Vz. These values are given at distances between diffusers B and installation heights H. Velocities Vz lower than, or equal to 0,25m/s at the occupied zone are advised.
The pressure losses Ps are given for diffusers without damper of with fully opened damper.
The acoustic power values Lw(A) are given for diffusers without damper of with fully opened damper without room attenuation. Acoustic powers below 20dB(A) are mentioned as "<20" in the tables.
For all special requirements, please contact our engineering office.

Dimensions

RWR-2	ØD1 [mm]	ØD2 [mm]	ØD3 [mm]	H [mm]	H1 [mm]	#Blades
100	98	134	150	74	45	10
125	123	170	190	86	55	10
160	158	220	250	86	55	10
200	198	270	300	86	55	10
250	248	320	350	86	55	10
315	313	385	415	86	55	10
355	353	425	455	100	65	10

Quick Selections

RWR-2				100			125			160			200			250			315			355
Q	Ak			0.0056			0.0086			0.0141			0.0224			0.0345			0.0537			0.0676
	B			1.2	2.4	3.6	1.2	2.4	3.6	1.2	2.4	3.6	1.2	2.4	3.6	1.2	2.4	3.6	1.2	2.4	3.6	1.2	2.4	3.6
40		H=	2.7	0.51	0.25	0.15	0.28	0.13	0.07
	Vz	H=	3.2	0.28	0.16	0.1	0.14	0.08	0.05
		H=	3.8	0.16	0.1	0.07	0.08	0.05	0.03
	Vk			2			1.3
	X0,25			2.1			1.6
	Ps			24			10
	Lw(A)			25			<20
60		H=	2.7	0.77	0.38	0.22	0.4	0.18	0.1	0.31	0.14	0.08
	Vz	H=	3.2	0.42	0.24	0.16	0.21	0.11	0.07	0.16	0.09	0.05
		H=	3.8	0.24	0.16	0.11	0.11	0.07	0.05	0.09	0.05	0.04
	Vk			3			1.9			1.2
	X0,25			2.6			1.8			1.7
	Ps			54			21			6
	Lw(A)			38			22			<20
100		H=	2.7				0.68	0.31	0.17	0.52	0.24	0.13	0.39	0.17	0.09
	Vz	H=	3.2				0.35	0.19	0.12	0.26	0.14	0.09	0.19	0.1	0.06
		H=	3.8				0.19	0.12	0.08	0.14	0.09	0.06	0.1	0.06	0.04
	Vk						3.2			2			1.2
	X0,25						2.3			2			1.8
	Ps						59			17			5
	Lw(A)						38			30			<20
150		H=	2.7							0.78	0.35	0.2	0.61	0.27	0.15	0.55	0.25	0.14
	Vz	H=	3.2							0.4	0.21	0.13	0.31	0.16	0.1	0.28	0.15	0.09
		H=	3.8							0.21	0.13	0.09	0.16	0.1	0.07	0.15	0.09	0.06
	Vk									3			1.9			1.2
	X0,25									2.4			2.2			2.1
	Ps									37			13			5
	Lw(A)									43			25			<20
200		H=	2.7										0.81	0.36	0.2	0.73	0.33	0.18	0.53	0.23	0.12
	Vz	H=	3.2										0.4	0.22	0.13	0.37	0.2	0.12	0.26	0.14	0.08
		H=	3.8										0.22	0.13	0.09	0.2	0.12	0.08	0.14	0.08	0.05
	Vk												2.5			1.6			1
	X0,25												2.4			2.4			2
	Ps												23			9			3
	Lw(A)												33			21			<20
250		H=	2.7										1	0.45	0.24	0.92	0.41	0.23	0.69	0.3	0.16	0.39	0.15	0.08
	Vz	H=	3.2										0.5	0.27	0.16	0.46	0.25	0.15	0.34	0.18	0.11	0.18	0.08	0.05
		H=	3.8										0.27	0.16	0.11	0.25	0.15	0.1	0.18	0.11	0.07	0.08	0.05	0.03
	Vk												3.1			2			1.3			1
	X0,25												2.7			2.6			2.3			1.8
	Ps												35			14			5			5
	Lw(A)												40			27			<20			<20
300		H=	2.7													1.1	0.49	0.27	0.85	0.37	0.2	0.47	0.18	0.09
	Vz	H=	3.2													0.55	0.3	0.18	0.42	0.22	0.13	0.21	0.1	0.06
		H=	3.8													0.3	0.18	0.12	0.22	0.13	0.09	0.1	0.06	0.04
	Vk															2.4			1.6			1.2
	X0,25															2.8			2.5			1.9
	Ps															20			8			7
	Lw(A)															32			<20			<20
350		H=	2.7													1.28	0.57	0.32	0.96	0.42	0.22	0.55	0.22	0.11
	Vz	H=	3.2													0.65	0.35	0.21	0.47	0.25	0.15	0.25	0.12	0.07
		H=	3.8													0.35	0.21	0.14	0.25	0.15	0.1	0.12	0.07	0.04
	Vk															2.8			1.8			1.4
	X0,25															3			2.6			2
	Ps															27			10			10
	Lw(A)															37			22			<20
400		H=	2.7													1.47	0.66	0.36	1.11	0.49	0.26	0.63	0.25	0.12
	Vz	H=	3.2													0.74	0.39	0.24	0.55	0.29	0.17	0.28	0.14	0.08
		H=	3.8													0.39	0.24	0.16	0.29	0.17	0.11	0.14	0.08	0.05
	Vk															3.2			2.1			1.6
	X0,25															3.1			2.8			2.1
	Ps															35			14			12
	Lw(A)															41			27			24
500		H=	2.7																1.38	0.6	0.32	0.83	0.32	0.16
	Vz	H=	3.2																0.68	0.36	0.21	0.37	0.18	0.1
		H=	3.8																0.36	0.21	0.14	0.18	0.1	0.06
	Vk																		2.6			2.1
	X0,25																		3			2.3
	Ps																		21			21
	Lw(A)																		35			34
